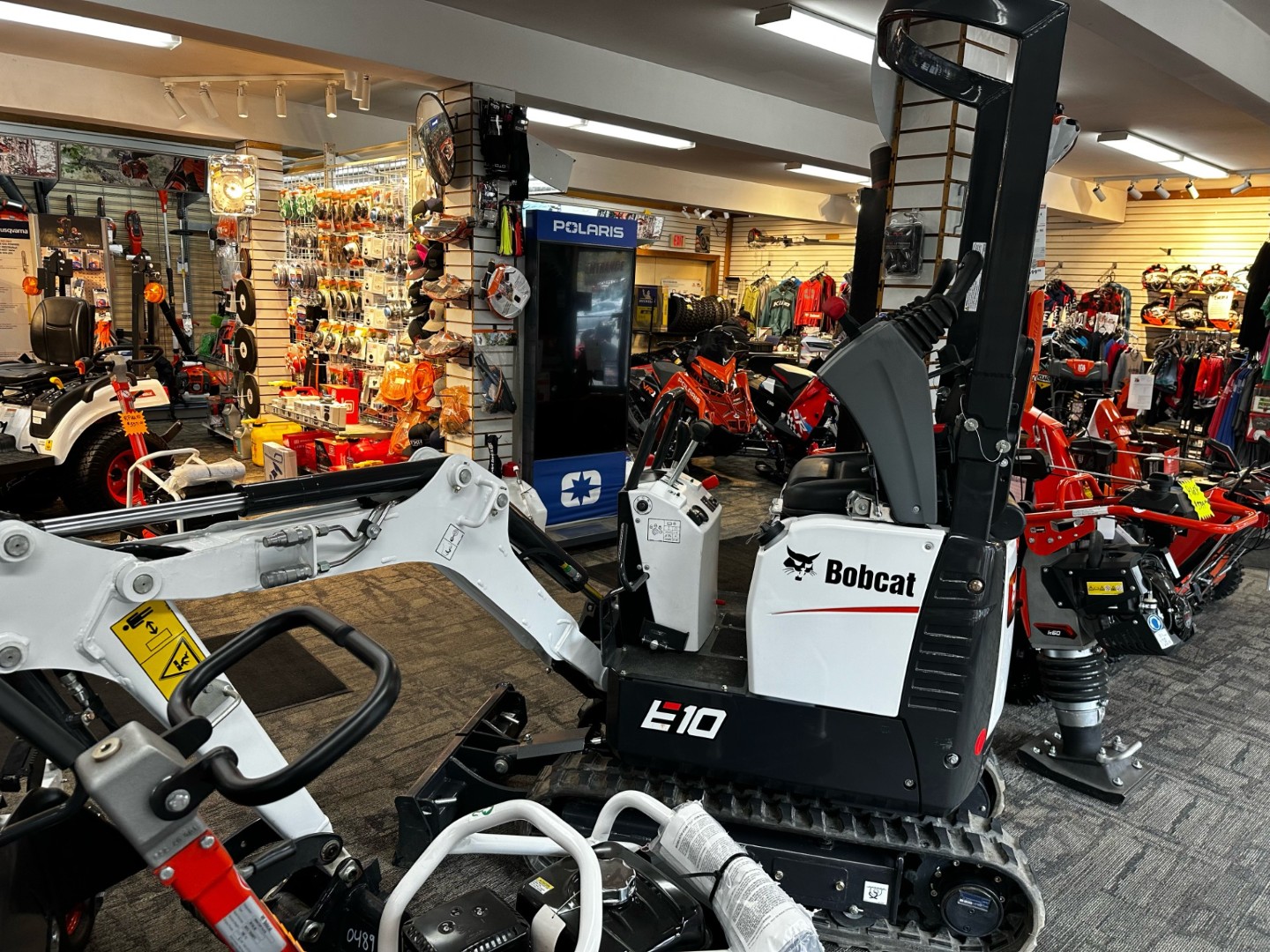

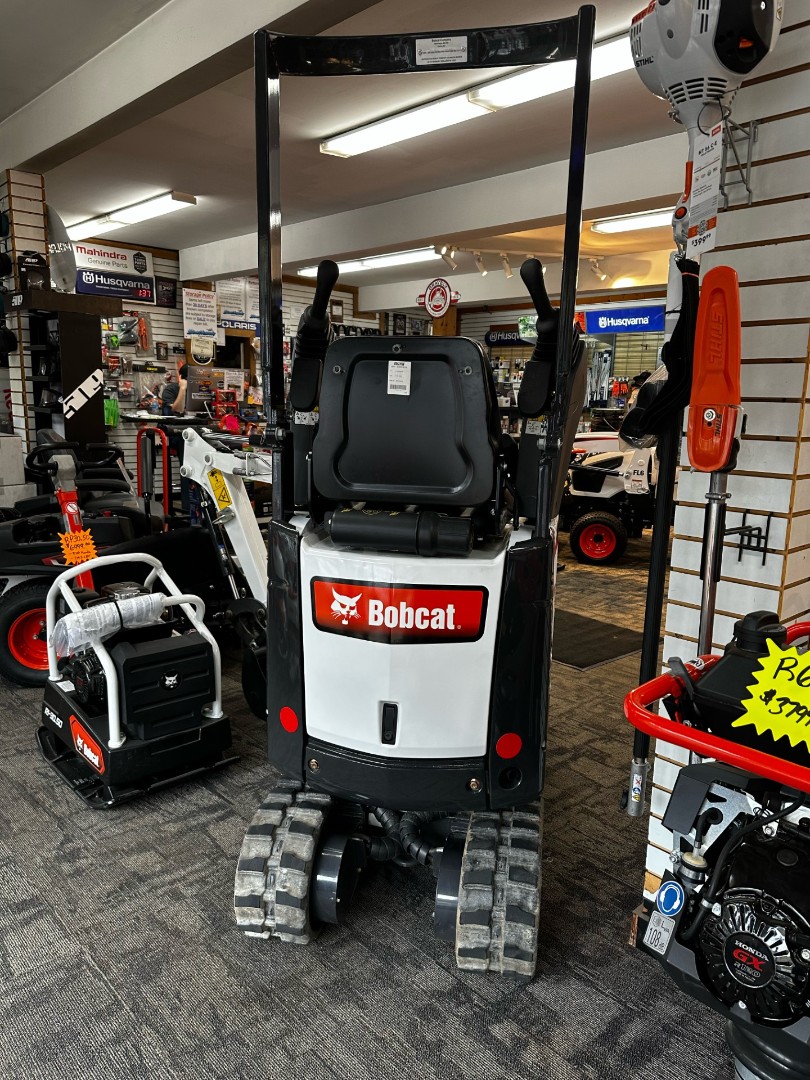

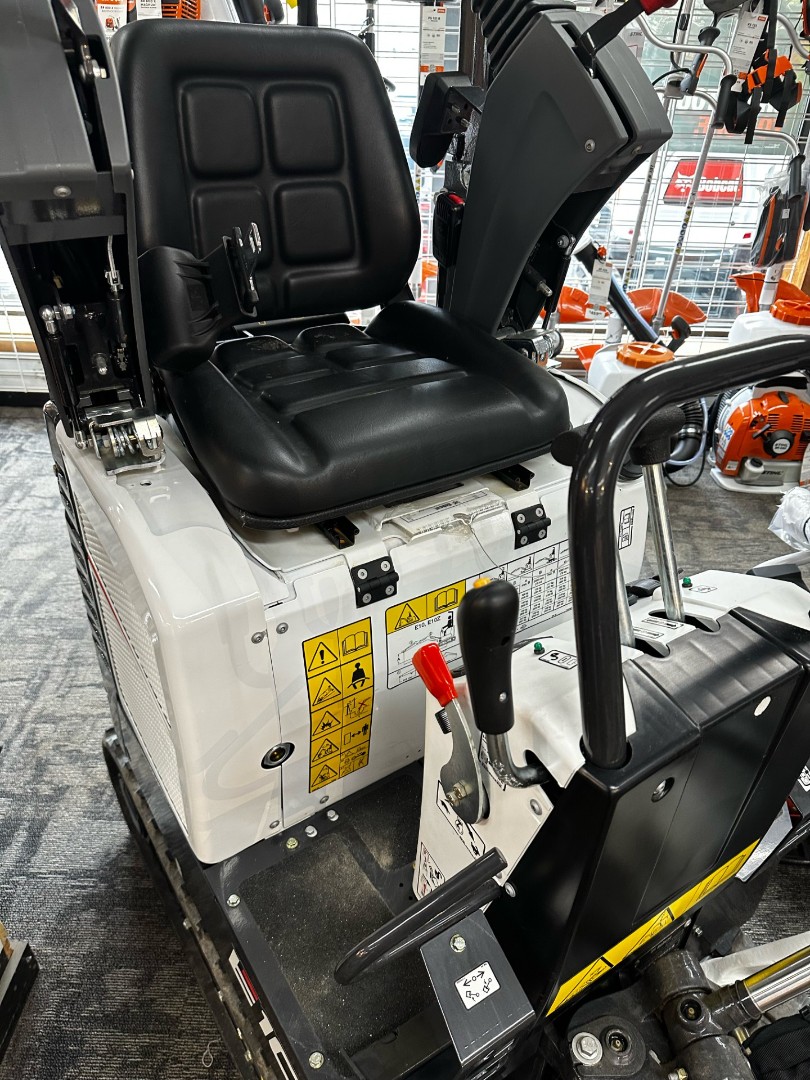

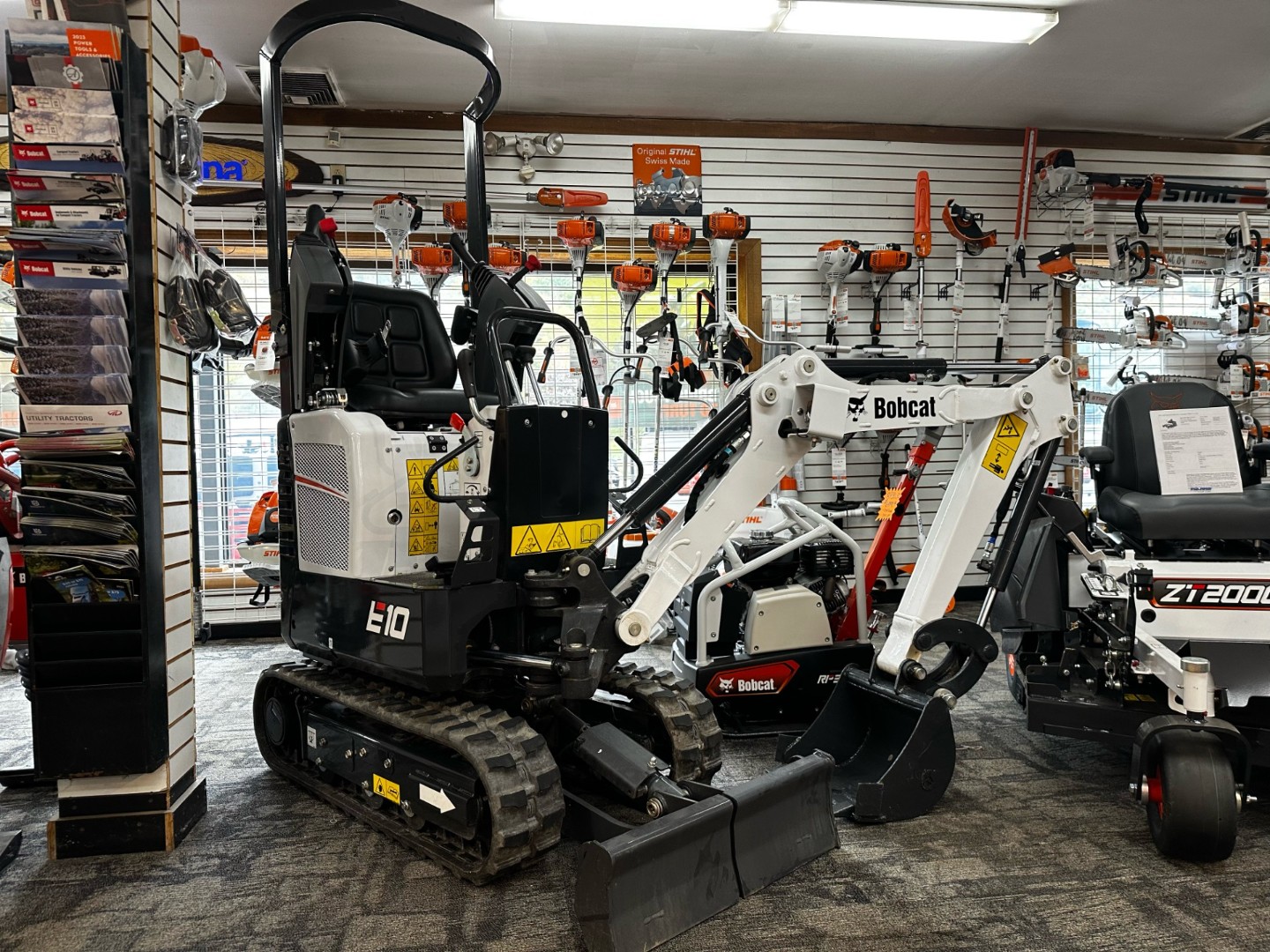

2025 Bobcat E10 Excavator

Access jobsites where hand labor is your only other option.

Features may include:

Ultra-compact design
Retracted 28-inch track width
Zero tail swing

Overview

With a retracted track width of 28 inches, the ultra-compact Bobcat® E10 compact (mini) excavator allows you to easily navigate through narrower openings and operate in tighter conditions.
Zero tail swing offers the greatest flexibility to slew and deposit spoil while offering the most protection against jobsite obstacles.
Pass underneath branches, low openings and through doorways to get to your work area.
Engine
Emissions Tier (EPA): Tier 4
Fuel System
Fuel Type Diesel
Operational
Operating Conditions Bucket Digging Force: 1,865 lbf | Arm Digging Force: 1,248 lbf
Operating Speed Maximum Governed RPM: 2,370 rpm | Travel - High: 1.7 mph | Travel - Low 1.3 mph
Hydraulics
Hydraulic Flow Auxiliary Std Flow: 5.3 gal/min
Maximum Pressure Auxiliary: 2,756 psi
Dimensions
Dimensions Maximum Reach at Ground Level: 122.4 in | Lift Radius: 79 in | Boom Swing - Left: 67° | Boom Swing - Right: 64°
Width 28 in
Depth, Maximum Maximum Dig Depth: 72 in
Height Max Dump: 72 in | 87 in | with Operator Cab: 87 in
Length 110 in
Overall Length in Travel Position: 110in
Capacities
Hitch Lift Capacity Rated Lift: 965 lb
Fuel Capacity Tank: 4.2 gal
Weights
Weight, In Running Order Operating: 2,593 lb
Weight Class: 1 t
Features
Features Tail Swing Type: Zero
